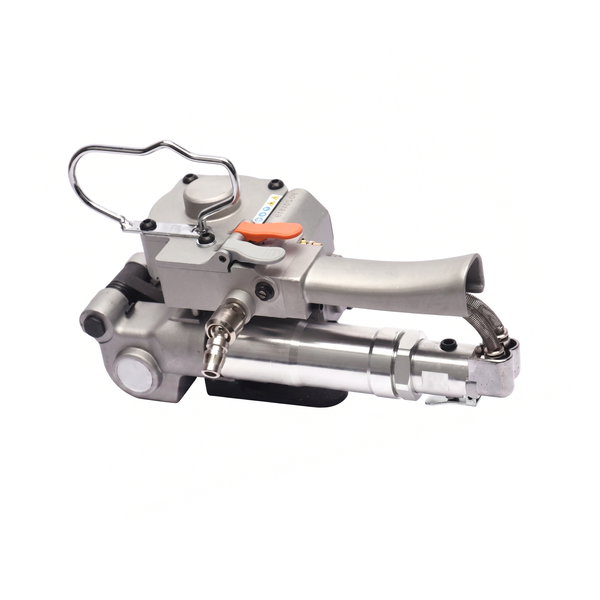

Technical Sheet
dodom.com
Features
| Dimensions and format | |
|---|---|
| Tool dimensions | 280 × 160 × 180 mm (11.0" × 6.3" × 7.1") |
| Machine weight | 3.80 kg (8.38 lb) |
| Color | Metallic gray |
| Strength and performance | |
| Maximum tension force | 3500 N (787 lbf) |
| Pneumatic system | |
| Power source | Compressed air (pneumatic) |
| Working pressure | 0.5 - 0.8 MPa (73 - 116 psi) |
| Ideal operating pressure | 0.63 MPa (91 psi) |
| Operation and ergonomics | |
| Welding time | 1 - 5 s (Adjustable) |
| Sealing method | Friction weld |
| Compatibility and use | |
| Compatible strap width | 13 - 19 mm (1/2 - 3/4 in) |
| Compatible strap thickness | 0.5 - 1.5 mm (0.020 in - 0.059 in) |
| Compatible strap type | PP (Polypropylene) and PET (Polyester) |
Packaging dimensions
| Strapping machine: Width | 280 cm (110.24 in) |
|---|---|
| Strapping machine: Height | 160 cm (62.99 in) |
| Strapping machine: Depth | 180 cm (70.87 in) |
| Strapping machine: Weight | 4.0 kg |
Warranty
Official MAXTENS® warranty
What's covered
- Extended Dodom warranty of 18 months from delivery, which extends the protection of Law 358-05 (Arts. 66–70), against manufacturing defects in the Pneumatic strapping tool for polypropylene (PP) and polyester (PET) strapping.
- Confirmed defect: replacement or refund of the amount paid.
What's not covered
- Any damage or deterioration unrelated to the manufacturing of the Pneumatic strapping tool for polypropylene (PP) and polyester (PET) strapping, such as damage resulting from use, normal wear and tear, or external causes, including force majeure.
Warranty valid only on genuine MAXTENS product, a brand distributed exclusively by Dodom. Reproducing this datasheet does not transfer any manufacturer warranty or backing.
