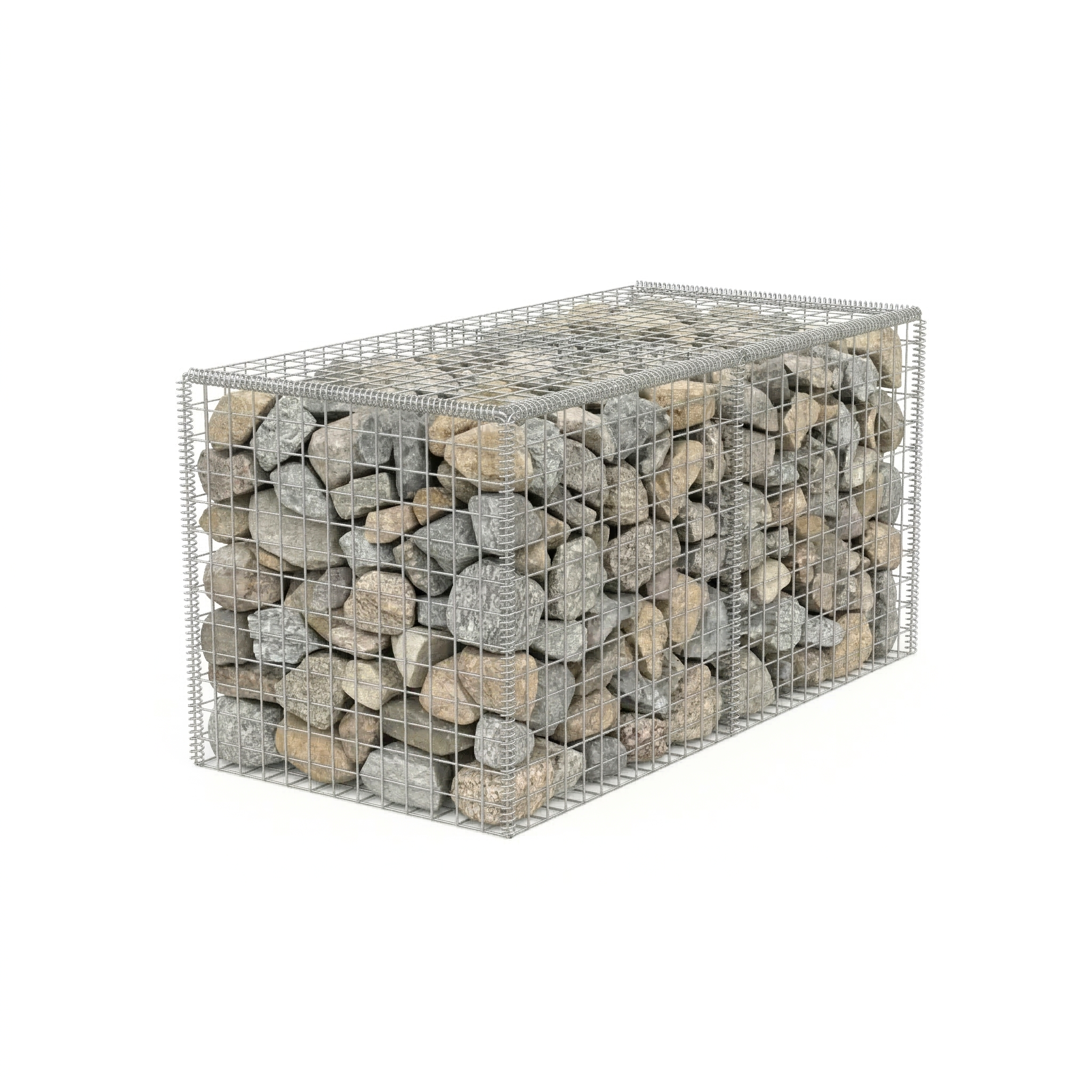

Building architectural retaining walls with a modern straight-line aesthetic, decorative planters with a clean look, urban furniture, and facade claddings where visual appearance is as important as structural function requires an electrowelded box gabion with rigid mesh of uniform grid and impeccable surface finish. This electrowelded box gabion—also called welded gabion, architectural gabion, or straight-line gabion—is manufactured by MOLTEXO with electrowelded steel wire mesh in 2×1×1 m format, designed for architectural projects, professional landscaping, urban furniture, and decorative walls in residential, commercial, and public infrastructure.
Key benefits
- Straight lines and rigid aesthetic geometry: the electrowelded wire on a uniform grid produces a gabion with flat faces and defined edges, an ideal condition for modern architecture, clean design, and projects where rectilinear geometry is part of the aesthetic concept of the space.
- Structural strength by rigid design: the electrowelded grid holds its shape without deforming under the weight of the infill stone and ground thrust, a condition for decorative walls and planters with an auditable aesthetic over decades, with no bulging or visible settlement.
- Natural drainage through permeability: the stone infill allows free water flow through the wall, preventing the buildup of hydrostatic pressure that would ruin solid concrete walls in areas with high subsoil moisture or heavy rainfall.
- Versatility of infill by aesthetic: local natural stone for landscape integration, crushed quarry stone for an industrial look, recycled glass or wood logs for high-impact decorative furniture—an adaptable condition depending on project design.
- Fast assembly without heavy machinery: the panels are assembled on site with simple connecting elements, a condition that significantly reduces site time compared with concrete walls with formwork, setting, and curing.
Typical applications and uses

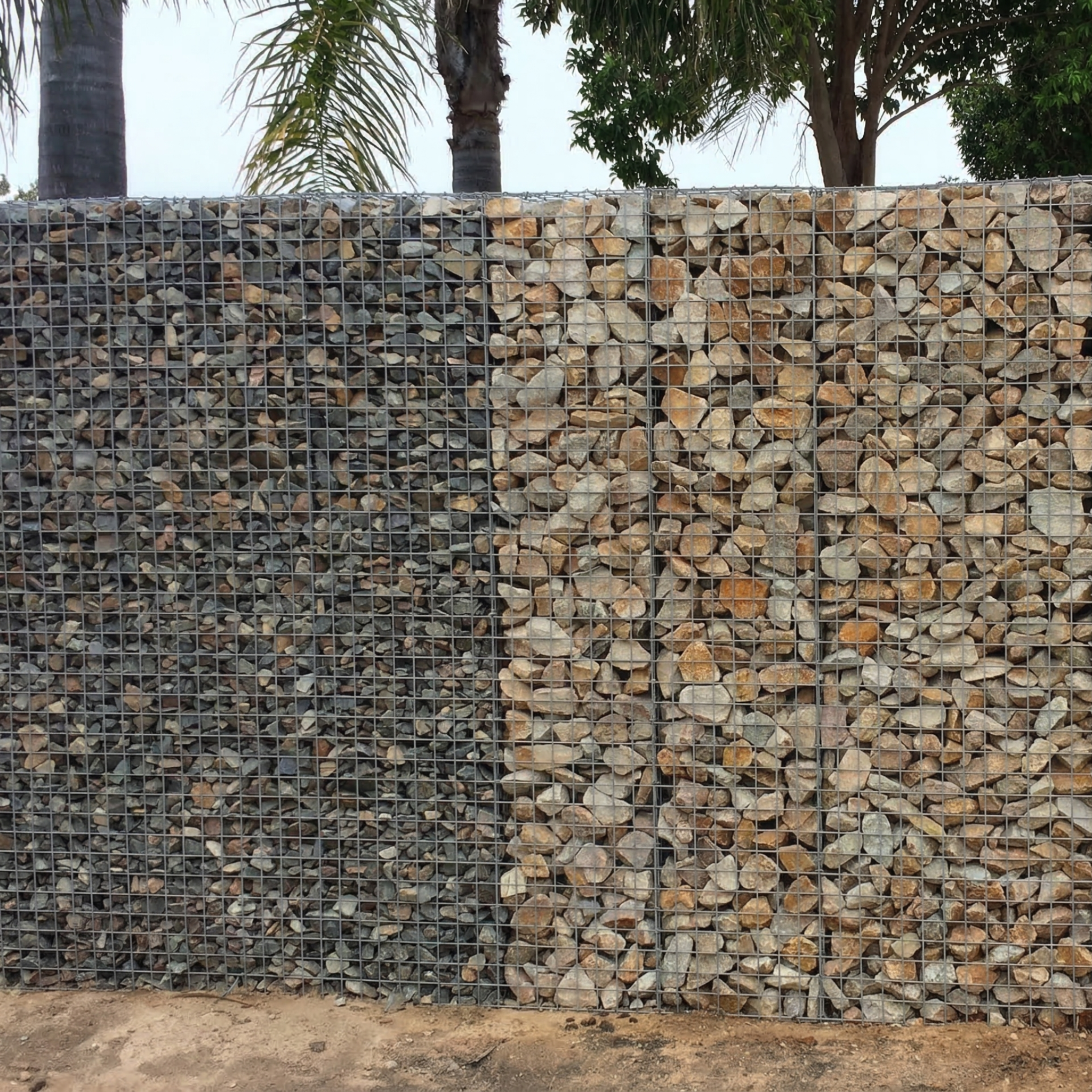

- Architectural retaining walls in residential, commercial, and urban infrastructure projects where the visible aesthetic is part of the project.
- Decorative planters, landscape dividers, and exterior design elements with a modern aesthetic.
- Urban furniture: benches, tables, dividers in plazas, parks, and pedestrian areas.
- Facade claddings and industrial-architectural design elements in bars, restaurants, and interior design.
For hydraulic works, river channeling, coastal defenses, and applications with progressive ground settlement, the PVC-coated double-twist hexagonal gabion is recommended, designed to absorb ground movement and resist continuous brackish water flow.
Quality and durability
An economical electrowelded gabion fails at two points: the wire galvanizing is superficial or of low quality (which rusts in the Caribbean climate of high humidity and coastal salinity within a few years) and the welds give way under the weight of the infill (which produces a deformed panel and an irregular wall). MOLTEXO works with deep galvanizing and controlled welds, which sets a professional-project architectural gabion with a service life of decades apart from a generic decorative gabion that rusts and deforms within a few years.
Hard, weather-resistant stones slightly larger than the mesh opening. Recommended options: river-rounded stones (natural look), crushed granite or quarry stone (structural look), local Caribbean limestone (economical and aesthetically integrated with Dominican landscapes). Average size should be 1.5 to 2 times the mesh opening to keep stones from escaping through the holes. Varying the size produces a more visually appealing wall. Avoid soft stones such as slate, which break down with continuous moisture, and fine sand, which migrates to the bottom.
Yes. The straight-line, defined-edge aesthetic of welded gabions makes them a popular element in modern architecture and industrial-architectural design. Typical indoor applications: bar bases for restaurants and bars, space dividers in offices and industrial lofts, modern decorative elements, and indoor planters with integrated vegetation. For indoor use they can be filled with decorative stone, recycled glass, ceramic spheres, or natural wood depending on the project's aesthetic. The structure does not rust under cover and lasts decades without maintenance.
Boxes are joined with edge fasteners at points of contact: galvanized tying wire, welded helicals, or metal staples depending on the supplier's system. For long walls, the units are joined laterally between adjacent boxes at points of contact: side walls and top-bottom edges. For tall stacked walls, it is critical to firmly tie the base of the upper gabion to the lid of the lower one and to the adjacent side gabions, creating a monolithic structure that distributes loads. For substantial heights it is advisable to size the base proportionally wider than the height, following standard retaining-wall engineering.
Yes, this step is essential for structural stability and a clean, auditable wall finish. The base where the first course will rest must be level, compacted, and free of debris and sharp objects. For small to medium walls, compacted soil with a sand leveling layer is enough. For larger walls or unstable Caribbean soils (saturated clays, soft organic soils), it is usually advisable to build a leveling base of lean concrete or compacted gravel that distributes loads and prevents differential settlement. Without a prepared base, the wall settles unevenly, compromising both straightness and structural integrity.
Still have questions?
Ask us and we will gladly help you with whatever you need.
| Size (Length × Width × Height) | 2 m (6.56 ft) × 1 m (3.28 ft) × 1 m (3.28 ft) |
|---|---|
| Material | Hot-dip galvanized |
| Mesh size | 100 mm (3.94 in) × 100 mm (3.94 in), tolerance ±16%, electro-welded |
| Mesh wire diameter | 3.1 mm (0.12 in) |
| Frame wire diameter | 3.8 mm (0.15 in) |
| Lacing wire diameter | 2.2 mm (0.09 in) |
| Tensile strength | ≥380 MPa (≥55114 psi) |
| Elongation | ≥12% |
| Developed area per gabion set | 11 m² (118.4 sq ft) |
| Weight per gabion set | 23.1 kg (50.9 lb) |
| Gabion: Width | 100.0 cm (39.37 in) |
|---|---|
| Gabion: Height | 200.0 cm (78.74 in) |
| Gabion: Depth | 10.0 cm (3.94 in) |
| Gabion: Weight | 231.0 kg |
