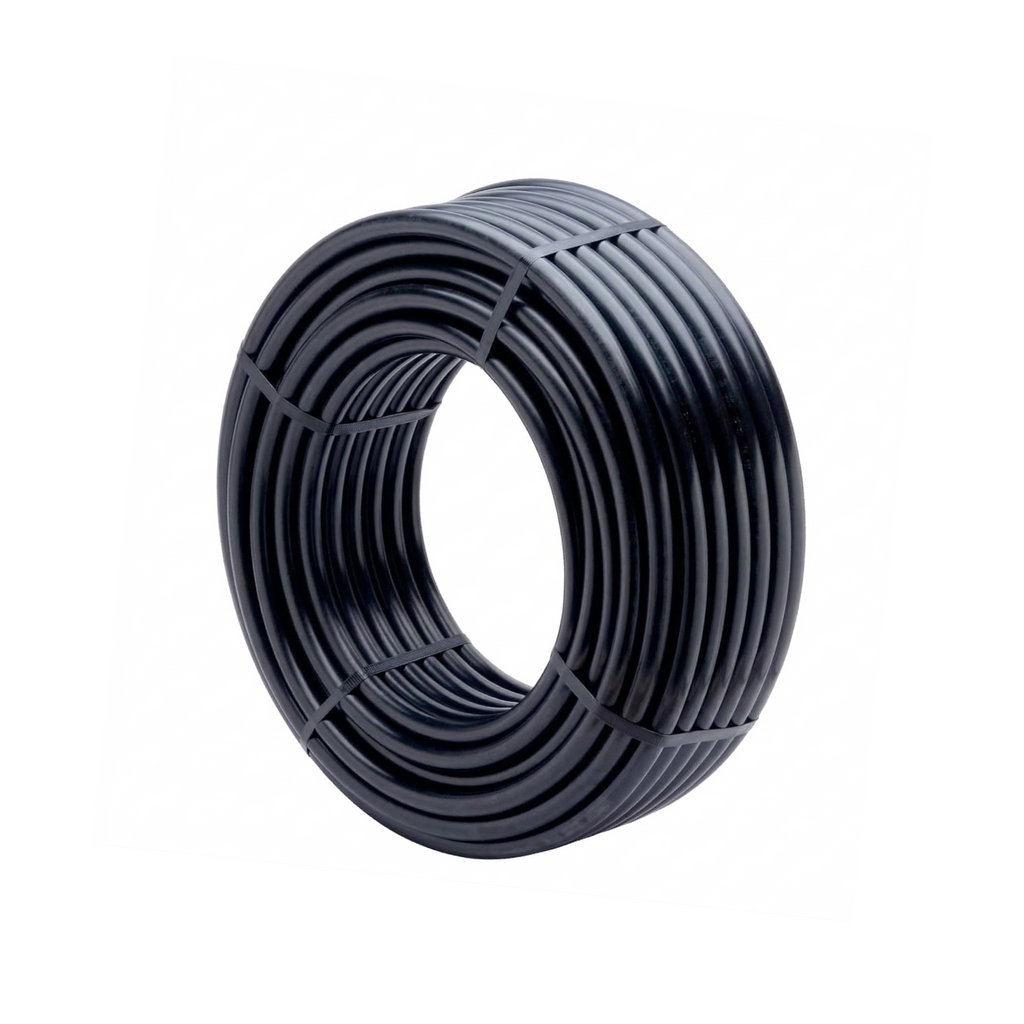

This pressure-compensating drip irrigation hose is the definitive solution for achieving exact and efficient water distribution in your crops or green areas. Thanks to its cutting-edge technology, you ensure that each plant receives the right amount of hydration, optimizing water resources and improving the return on your investment.
- Uniform Flow (PC): Its pressure compensation system maintains a constant flow rate over a wide range of operating pressures, ideal for uneven terrain or steep slopes. Flow deviation does not exceed 7%.
- Anti-Drain System (ND): The dripper automatically closes when the pressure drops below 0.14 bar (2.03 psi). This keeps the pipe full of water between cycles, allowing immediate and uniform irrigation throughout the line when the system restarts.
- Anti-Siphon Mechanism (AS): Designed to prevent the aspiration of soil particles through the dripper outlet, making it the preferred option for Subsurface Drip Irrigation (SDI) or buried irrigation.

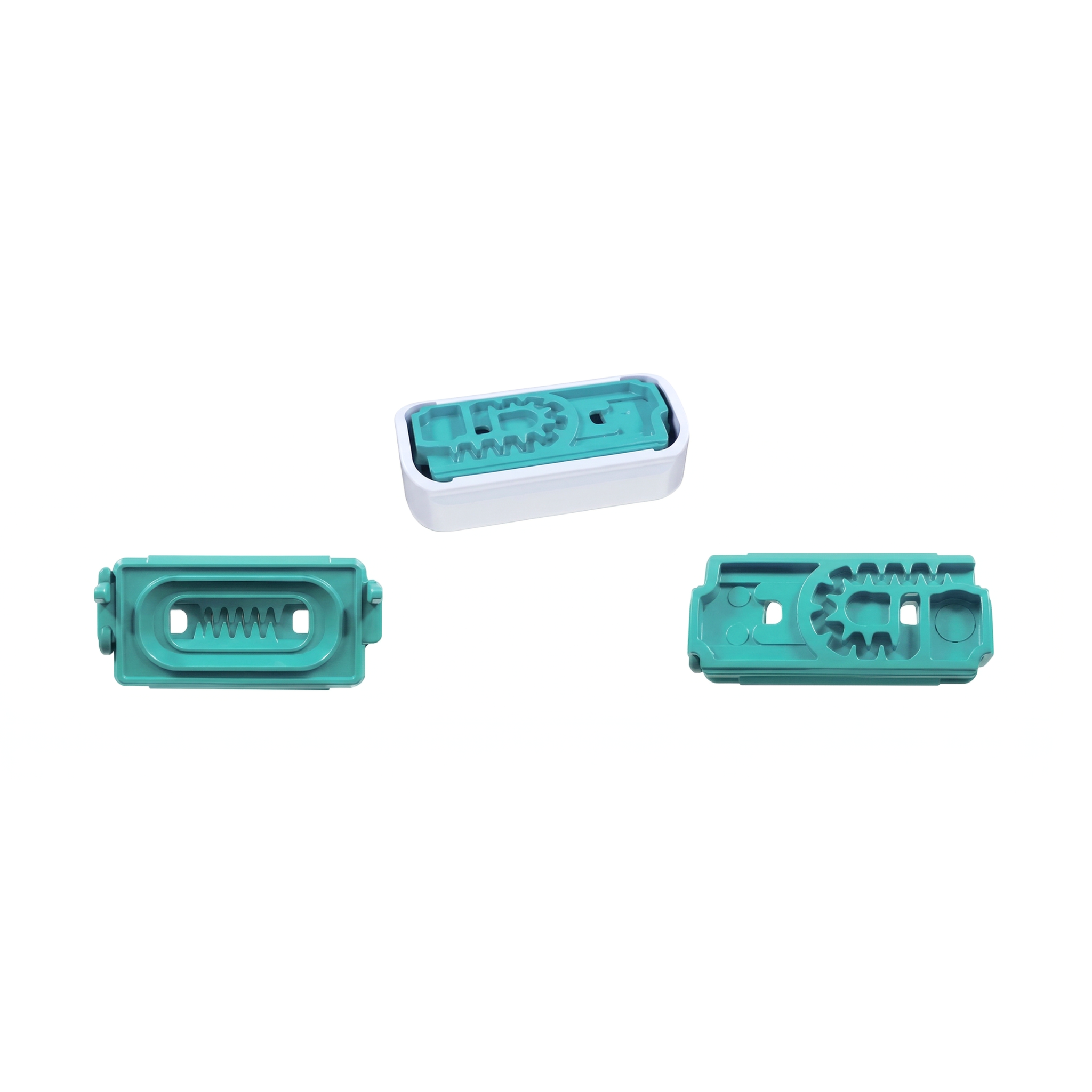

- Maximum Clogging Resistance: Incorporates an inlet filter with an anti-drain barrier, a high-quality silicone diaphragm, and a wide-path labyrinth that facilitates self-cleaning and extends the equipment's lifespan.
- Durable Construction: Manufactured with materials resistant to sun exposure and agricultural chemicals, ensuring optimal performance in demanding conditions.
Applications and compatibility

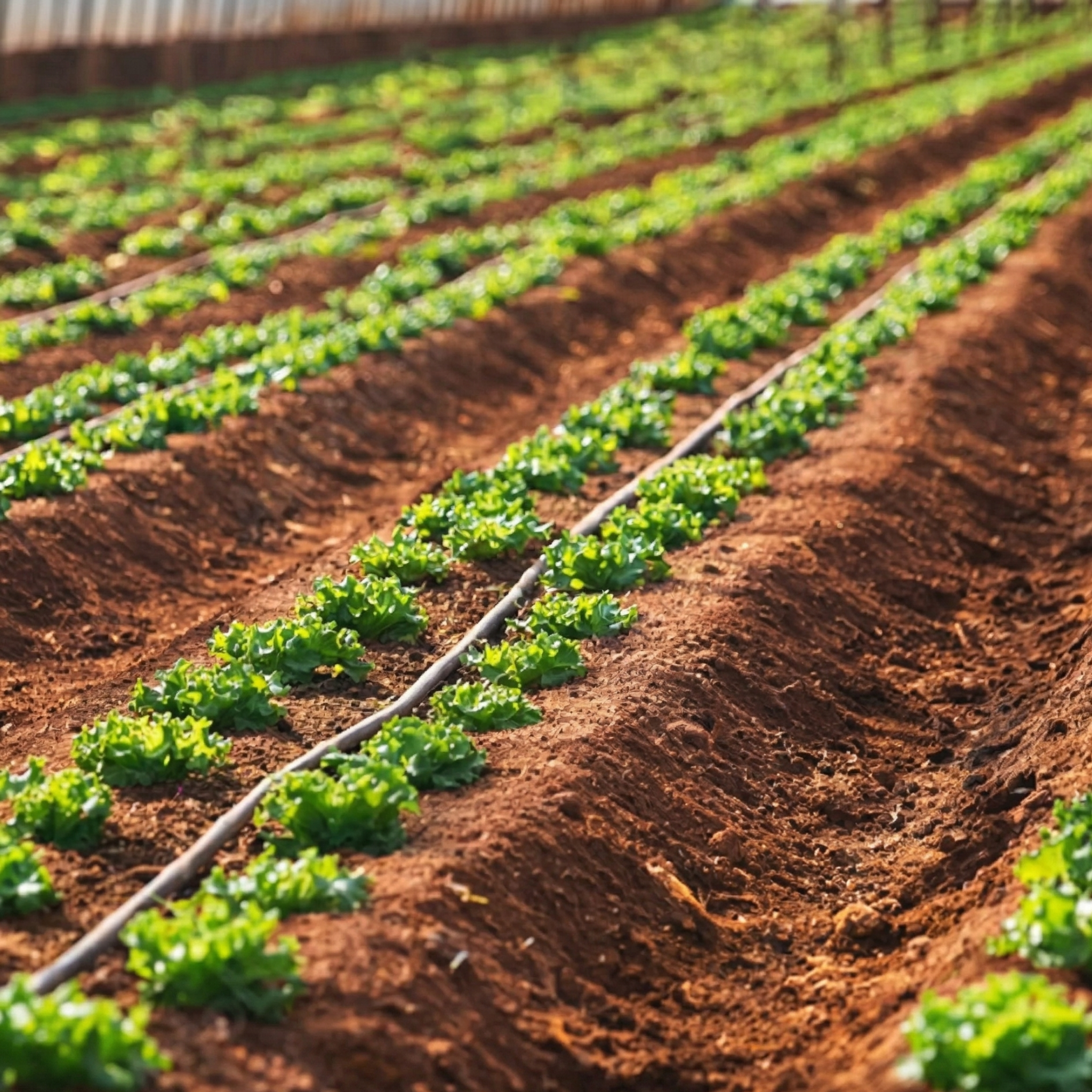

This product is compatible with standard localized irrigation accessories. It is ideal for precision agriculture applications, greenhouses, residential landscaping, and buried irrigation projects where high reliability is required.
Installation and basic use
For installation, be sure to unroll the hose avoiding excessive twisting. It can be placed superficially or buried depending on the project's needs. It is recommended to verify that the operating pressure remains within the self-compensation range to maximize its efficiency.
Maintenance
Thanks to its self-cleaning and internal filtration technology, maintenance is minimal. However, periodic pipe flushing and an adequate primary filtration system at the irrigation head are recommended.
Still have questions?
Ask us and we will gladly help you with whatever you need.
| Diámetro | 16 mm (5/8 in) |
|---|---|
| Espesor de pared | 1.0 mm (Calibre 4000 / 39 mil) |
| Separación entre goteros | 30 cm (12 in) |
| Caudal nominal | 1.6 L/h (0.35 gal/h) |
| Presión de trabajo | 3.0 Bar |
| Longitud del rollo | 500 m (1640 ft) |
| Rollo: Width | 80.0 cm (31.5 in) |
|---|---|
| Rollo: Height | 80.0 cm (31.5 in) |
| Rollo: Depth | 40.0 cm (15.75 in) |
