Watering perennial plantations on uneven terrain, fruit trees on slopes, or professional subsurface drip irrigation (SDI) projects —where a standard hose delivers uneven flow and clogs from soil suction— requires a pressure-compensating drip hose with a silicone diaphragm and integrated anti-drain and anti-siphon mechanisms. This pressure-compensating drip irrigation hose —also known as PC drip line, heavy-wall PC hose, or thick-walled PC tubing— is manufactured by Gardese from LDPE, 16 mm diameter and 1 mm thick (4000 gauge), with integrated PC emitters (1.6 L/h flow rate, maximum deviation 7%), 0.14 bar anti-drain threshold, in two spacings (30 and 50 cm), in 500 m rolls, designed for professional precision agriculture, permanent plantations, and subsurface irrigation projects.
Key benefits
- Uniform PC flow with maximum 7% deviation: the pressure-compensating system with a silicone diaphragm holds flow practically constant across the operating pressure range, equalizing the dose at every plant —an audited requirement for professional fertigation and agro-export with agronomic auditing.

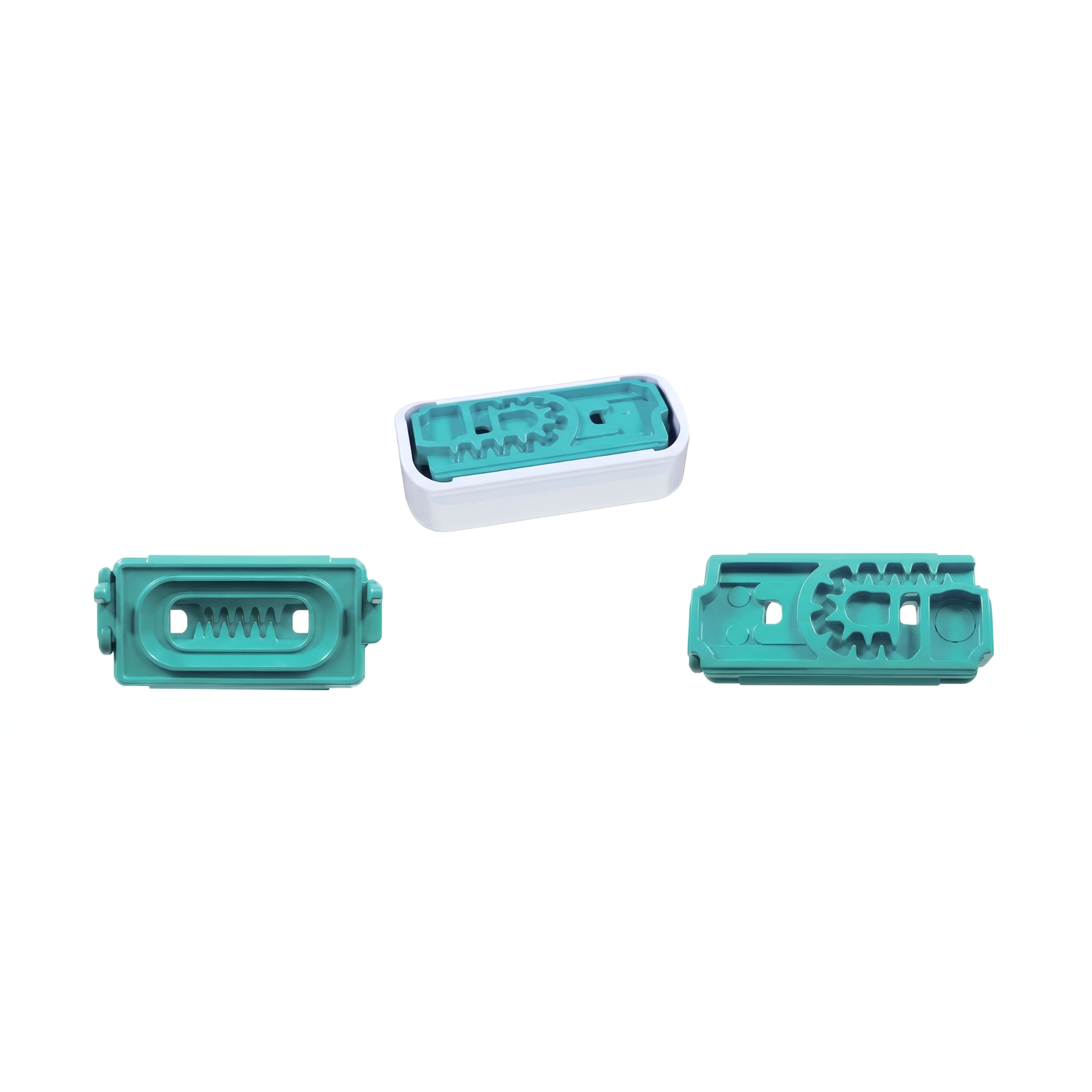

- Anti-drain (ND) threshold of 0.14 bar (2.03 psi): the emitter closes automatically when pressure drops below this threshold, keeping the line full between cycles so the next pulse starts with every emitter discharging from the first second —decisive for efficient pulse irrigation.
- Anti-siphon (AS) mechanism for SDI: prevents soil particles from being sucked through the emitter when the system shuts down, an essential condition for buried subsurface drip irrigation, where a conventional hose is ruined by root and sand suction.
- Maximum clogging resistance: inlet filter with anti-drain barrier, high-grade technical silicone diaphragm, and wide-passage labyrinth with dynamic self-cleaning, which significantly extends emitter lifespan compared with flat drip tape.
- Heavy-wall thickness (1 mm, 4000 gauge): calibrated for multi-season use (several years) with mechanical resistance to occasional agricultural equipment passage and intense Caribbean sun exposure.
Typical applications and uses
- Perennial plantations on uneven terrain: citrus, mango, avocado, papaya, palm, cocoa on non-flat plots.
- Buried subsurface drip irrigation (SDI) for fruit trees and crops where the system remains underground for years.
- Precision fertigation with short, frequent pulse irrigation in intensive agriculture.
- Professional residential landscaping with garden borders, decorative rows, and sloped garden areas.
Quality and durability
An economical pressure-compensating hose fails on two counts: the compensation diaphragm is made of low-grade silicone (losing elasticity within months and ceasing to compensate flow), and it lacks reliable AS and ND mechanisms (allowing soil suction and line drainage between cycles). Gardese uses a technical silicone diaphragm with maximum 7% deviation and integrated ND/AS mechanisms, which separates a true PC hose built for professional fertigation from a hose labeled “PC” that does not actually compensate in practice.
PC (Pressure Compensating) means the emitter delivers constant nominal flow (1.6 L/h in this model) across the entire operating pressure range, typically between 0.5 and 4 bar. Compensation is done by a silicone diaphragm that deforms with pressure and modulates the emitter opening. The result: the first and last plant on the line receive practically the same amount of water, regardless of rises, drops or pump variations. In non-PC systems flow can vary 30-50% between ends and ruin crop uniformity.
Yes, it is the preferred option for subsurface drip irrigation (SDI). The Anti-Siphon (AS) mechanism prevents the emitter from sucking soil, roots or impurities into the labyrinth when the pump shuts off, an issue that ruins conventional underground hoses within months. Combined with the heavy-wall thick wall (gauge 4000) and UV additives, the hose is sized for several years buried with continuous irrigation. For SDI it pays to protect the connection points with appropriate seals and to keep manifold filtration scrupulous to avoid hard-to-diagnose incidents.
To keep the line full of water between irrigation cycles when the pump shuts off. Without ND, water drains out of the lowest emitter on the field and the line empties; when the system restarts, water takes minutes to fill the full pipe before every emitter starts to flow, losing effective irrigation time and producing non-uniformity. ND closes the emitter when pressure falls below 0.14 bar; on restart, every emitter flows from the first second. It is decisive in short-pulse irrigation (5-15 min) and frequent cycles (several per day) typical of precision farming.
Although every PC emitter has its own filter and a wide-passage labyrinth, manifold filtration remains critical. Minimum 130 microns (120 mesh) in a screen or disc filter for the whole system. For Caribbean water with high mineral load (iron, calcium, biofilm) it pays to combine a screen filter with a disc filter, plus periodic descaling with 1-2% citric acid if scale appears. Without proper manifold filtration the emitter labyrinth clogs with coarser sediment and the warranty does not apply. The main filter is inspected and cleaned weekly in peak irrigation season.
Yes. The thick wall in gauge 4000 (1 mm) with UV-HALS additives is sized to handle several seasons of continuous use under Caribbean radiation without losing flexibility or diaphragm compensation capacity. The critical components (silicone, polyethylene) are calibrated not to turn brittle within the Caribbean operating thermal range (15°C to 50°C at soil surface). To maximize service life, keep filtration in good shape, run periodic line flushes and check pressure so as not to exceed the recommended operating range. When partially buried, durability is even higher.
Still have questions?
Ask us and we will gladly help you with whatever you need.
| Diameter | 16 mm (5/8 in) |
|---|---|
| Wall thickness | 1.0 mm (4000 gauge / 39 mil) |
| Dripper spacing | 30 cm (12 in) |
| Nominal flow rate | 1.6 L/h (0.35 gal/h) |
| Working pressure | 3.0 bar (43.5 psi) |
| Roll length | 500 m (1640 ft) |
| Roll: Width | 80.0 cm (31.5 in) |
|---|---|
| Roll: Height | 80.0 cm (31.5 in) |
| Roll: Depth | 40.0 cm (15.75 in) |
| Roll: Weight | 23.5 kg |
