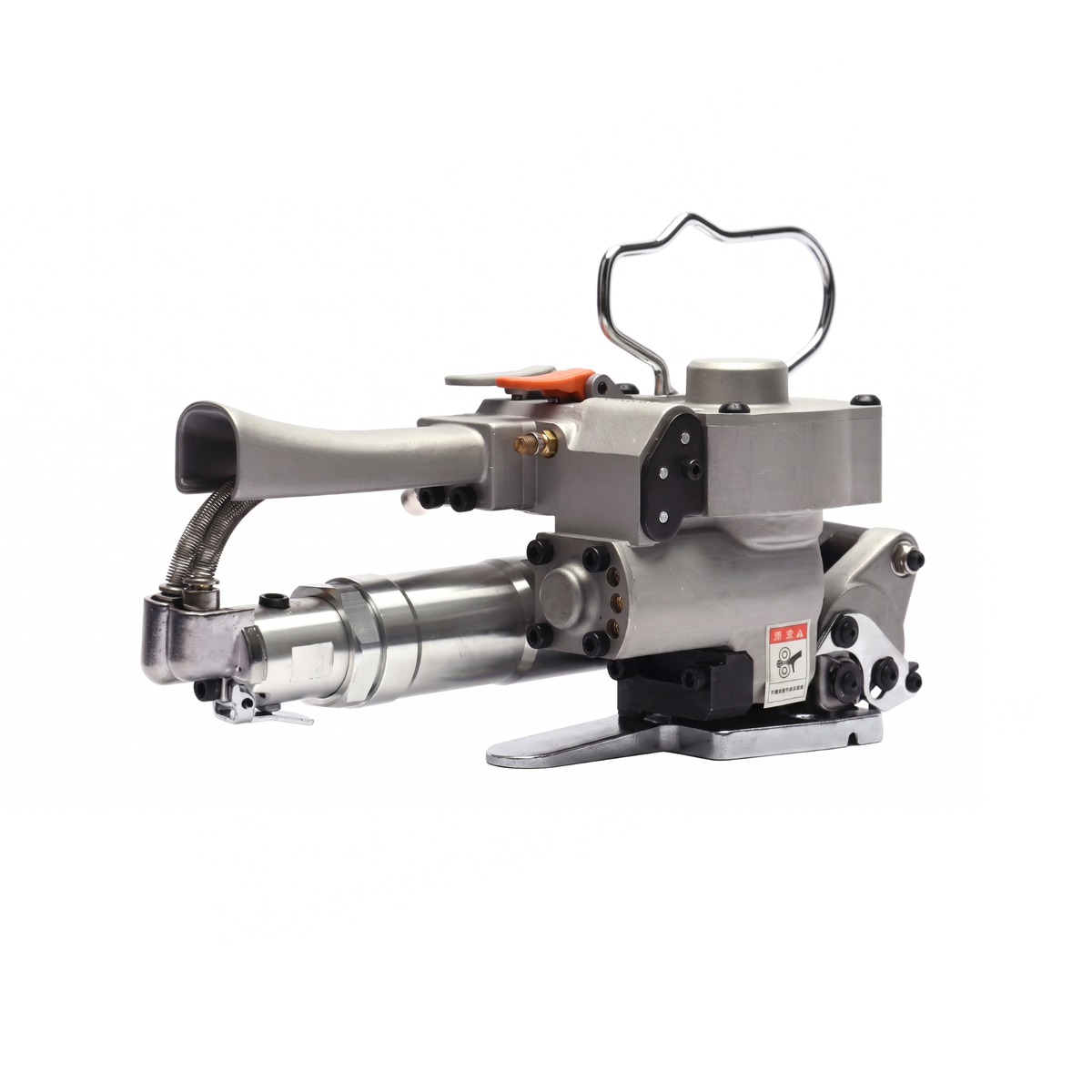

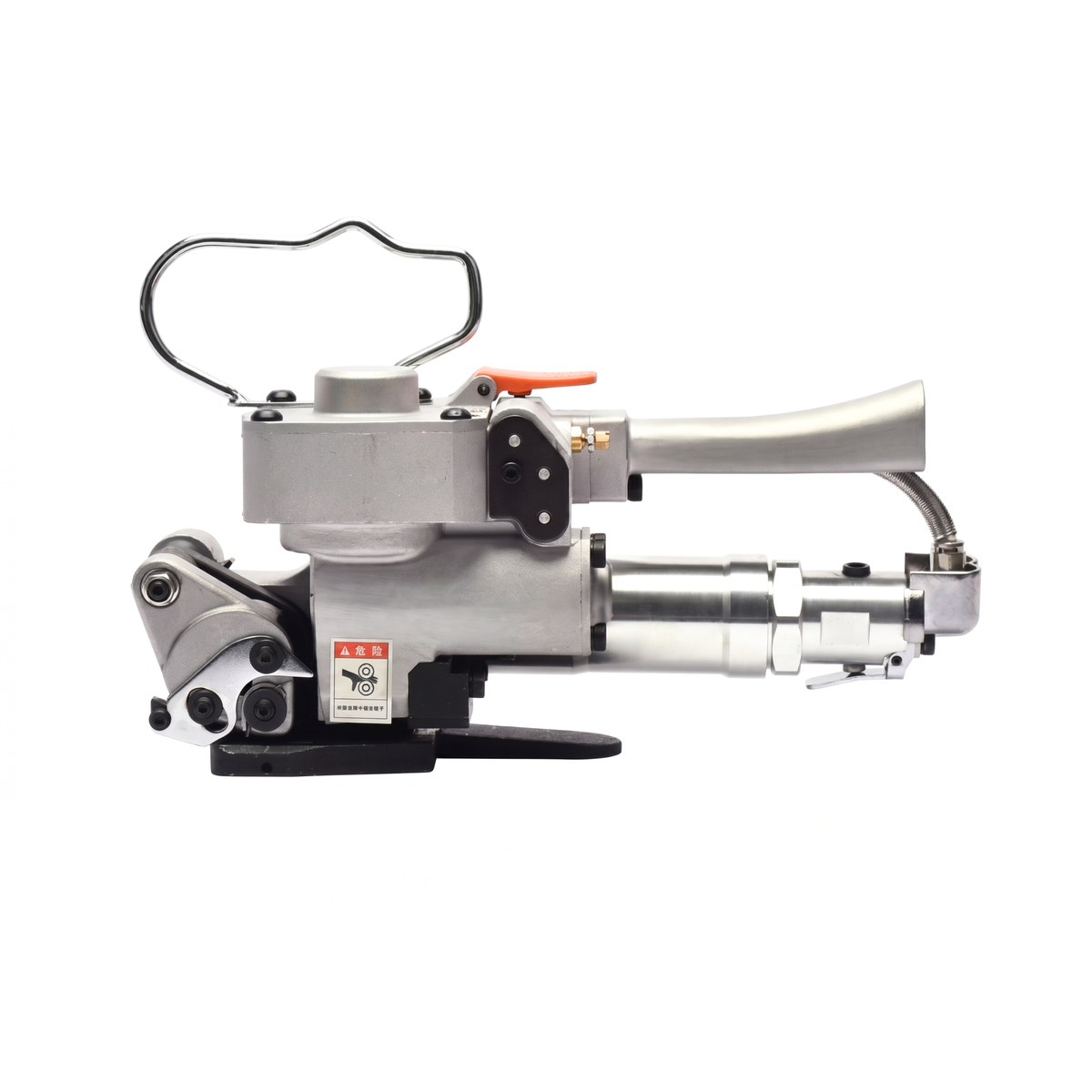

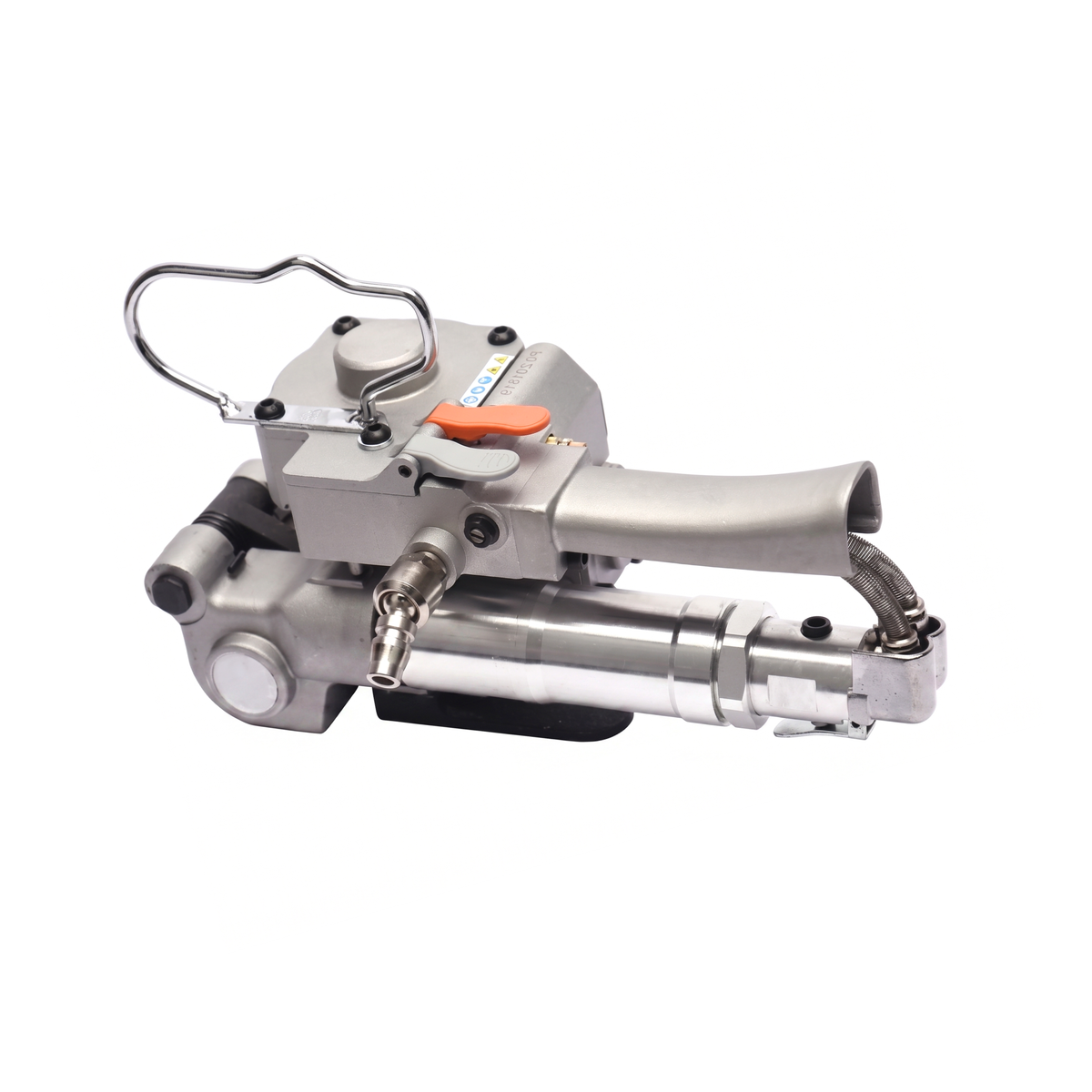

Continuously strapping pallets and heavy packages without using three manual tools (tensioner, crimper, and seal supply) or relying on batteries that die halfway through the day requires a pneumatic strapping tool that tensions, friction-welds, and cuts plastic strapping in a single step, powered by compressed air. This pneumatic strapping tool for polypropylene (PP) and polyester (PET) strapping—also called a pneumatic strapping machine or air strapping tool—is manufactured by Maxtens with pneumatic actuation and a thermal friction welding system, offering 3500 N of tension and a separator-free design, available in two versions depending on the strap width (13–19 mm and 19–25 mm), designed for warehouses, factories, distribution centers, and construction sites where strapping is continuous and manual strapping does not scale.
Key Benefits
- Friction welding without metal seals: The head generates heat through rapid vibration that melts and joins the ends of the plastic strapping, completely eliminating the consumption of staples, seals, or buckles and reducing the cost per pallet.
- High tension of 3500 N: Tightening force sized for heavy palletizing and compact loads, with a firm hold that does not loosen during transport.
- PP and PET compatibility in a single machine: Allows adjustment of welding time for both materials, avoiding duplicating tools based on strap type.
- Battery-free pneumatic operation: Powered by compressed air, it works continuously as long as there is an air line, without pauses for recharging or loss of capacity with intensive use.
- Three operations in one cycle: Tension, weld, and cut with button activation, which eliminates the fatigue of manual strapping and reduces time per pallet to a fraction.
Typical Applications and Uses
- High-volume palletizing in block, ceramic, food, paper, and cardboard factories.
- Logistics distribution centers where in-line strapping is continuous and manual strapping is not efficient.
- Sawmills and timber operations where the speed of heavy-duty strapping is critical.
- Construction and heavy-duty work for quick securing of loads that change position.
Quality and Durability
An inexpensive pneumatic strapping tool fails in two ways: the welding head does not generate uniform heat (leading to weak joints that open at the first tug) and internal cylinder seals lose pressure, reducing actual tension below stated levels. Maxtens works with a calibrated head for uniform welding on PP and PET and a stable-pressure pneumatic cylinder, with an alloy base and a 360° swivel air inlet, which separates a professional continuous-operation strapping tool from equipment that yields a few hundred cycles before showing problems.
Equivalences
Equivalent to these other-brand references:
- 13 - 19 mm (1/2 - 3/4 in)
- Willie Pak JA19 Pneumatic PP/PET Strapping Tool, 13–19 mmITA Tools ITA 11 Pneumatic PP/PET Strapping Tool, 13–19 mm
- 19 - 25 mm (3/4 - 1 in)
- Willie Pak JA25 Pneumatic PP/PET Strapping Tool, 19–25 mmPACKTECH PT-PNF-25 Pneumatic PP/PET Strapping Tool, 19–25 mm
Brands and references mentioned belong to their respective owners; cited only for comparison and compatibility.
Do I need staples, seals or metal buckles to seal the strap?
What compressor or air pressure do I need to run it?
Which version should I choose, 13–19 mm or 19–25 mm?
Does it work with steel strap or only plastic?
What maintenance does it need to last in intensive operation?
Still have questions?
Ask us and we will gladly help you with whatever you need.
| Dimensions and format | |
|---|---|
| Tool dimensions | 280 × 160 × 180 mm (11.0" × 6.3" × 7.1") |
| Machine weight | 3.80 kg (8.38 lb) |
| Color | Metallic gray |
| Strength and performance | |
| Maximum tension force | 3500 N (787 lbf) |
| Pneumatic system | |
| Power source | Compressed air (pneumatic) |
| Working pressure | 0.5 - 0.8 MPa (73 - 116 psi) |
| Ideal operating pressure | 0.63 MPa (91 psi) |
| Operation and ergonomics | |
| Welding time | 1 - 5 s (Adjustable) |
| Sealing method | Friction weld |
| Compatibility and use | |
| Compatible strap width | 13 - 19 mm (1/2 - 3/4 in) |
| Compatible strap thickness | 0.5 - 1.5 mm (0.020 in - 0.059 in) |
| Compatible strap type | PP (Polypropylene) and PET (Polyester) |
| Strapping machine: Width | 280.0 cm (110.24 in) |
|---|---|
| Strapping machine: Height | 160.0 cm (62.99 in) |
| Strapping machine: Depth | 180.0 cm (70.87 in) |
| Strapping machine: Weight | 4.0 kg |
Official MAXTENS warranty
What's covered
Confirmed defect: replacement or refund of the amount paid.
What's not covered
