Pressure-compensating drip irrigation tape

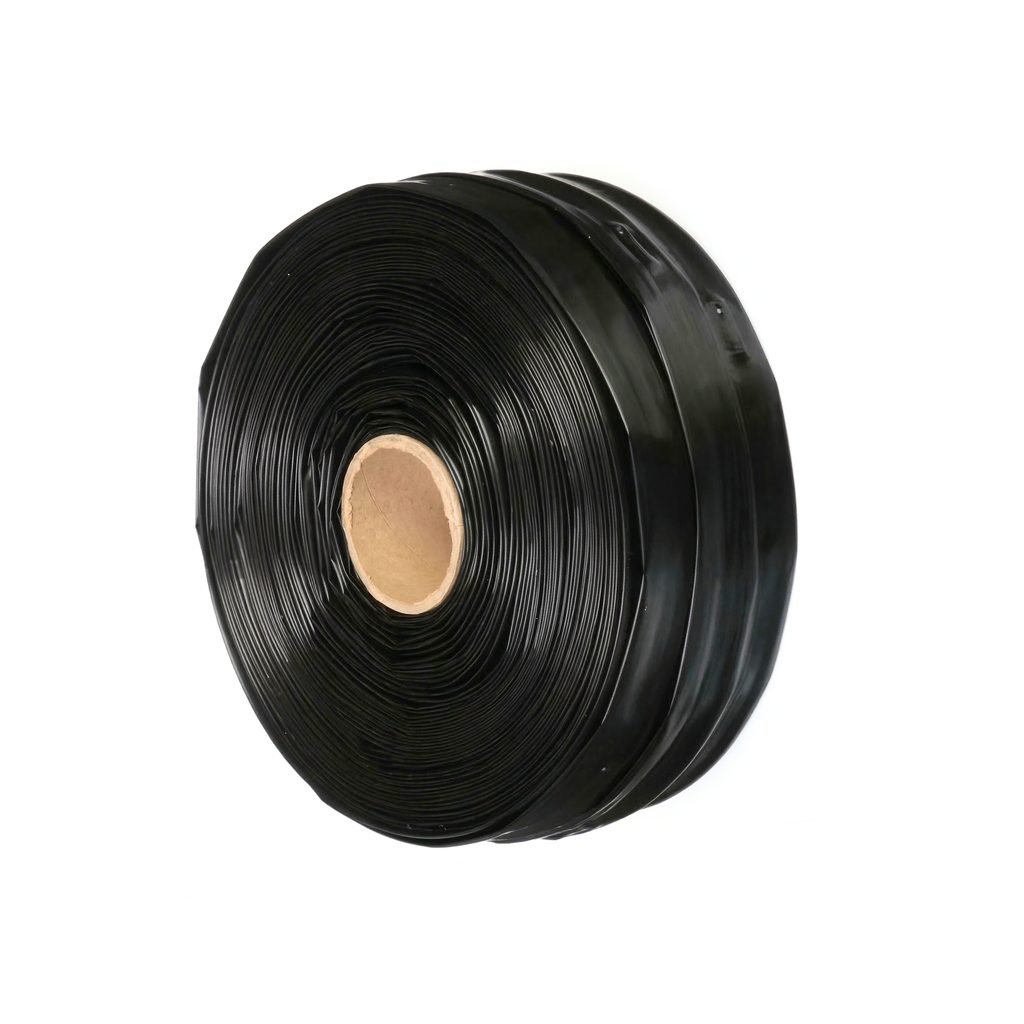

Irrigating plots with steep slopes, long lateral lines, or uneven terrain —where conventional drip tape delivers uneven flow between high and low areas and compromises the crop— requires a pressure-compensating tape with integrated PC, ND, and AS technology, manufactured to a tight specification for professional fertigation. This pressure-compensating drip irrigation tape —also known as PC drip tape, pressure-compensated drip line, or drip tape for slopes— is manufactured by Hidroplex from LDPE, 16 mm diameter and 0.6 mm thick (240 gauge), with integrated pressure-compensating emitters (1.6 L/h flow rate), in two spacings (20 and 30 cm), in 500 m rolls, designed for precision agriculture, fertigation, rolling terrain, and row crops on uneven land.

Key benefits

• Pressure compensation for uniform flow: the emitter delivers a practically constant flow rate across the entire operating pressure range, equalizing the dose at every plant regardless of position on uneven plots. Without this technology, lower plants receive more water than higher ones.
• Non-drain (ND) function for pulse irrigation: the emitter closes automatically when pressure drops, keeping the line full between cycles so the next pulse starts with every emitter discharging from the first second —decisive for short, frequent pulse fertigation.

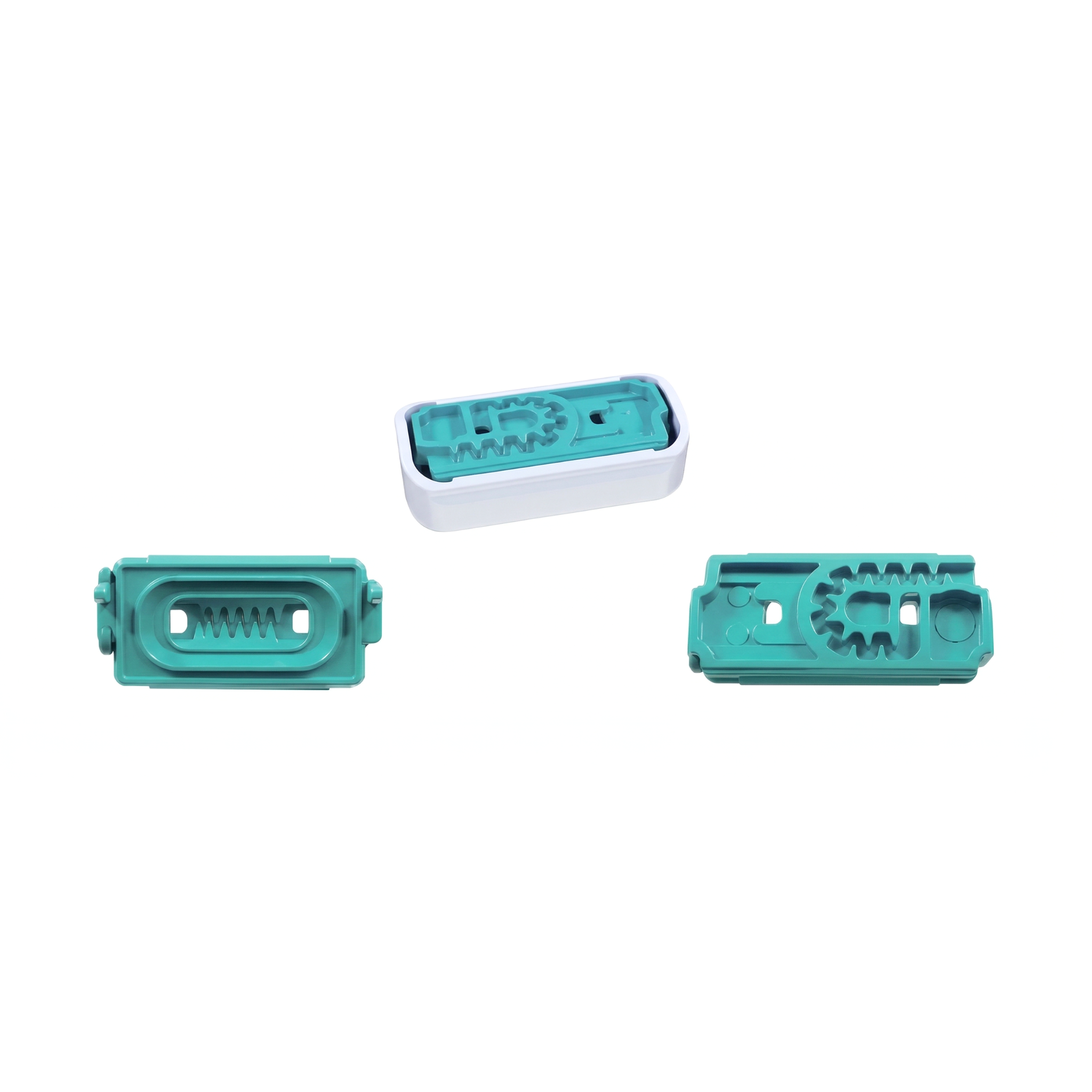

• Anti-siphon (AS) mechanism for buried irrigation: prevents soil and particles from being sucked into the emitter when the system shuts down, a critical condition for SDI (subsurface drip irrigation), the most efficient variant for perennial crops and water-scarce areas.
• Wide-passage labyrinth with self-cleaning: the internal geometry lets fine suspended sediments pass through and self-cleans under water pressure during the irrigation cycle, drastically reducing the clogging typical of Caribbean water.
• 240 gauge (0.6 mm) for multi-season use: a thickness calibrated between conventional flat tape (1200 gauge) and heavy-wall hose (4000 gauge), engineered for 2–3 seasons of use under Caribbean radiation before replacement.

Typical applications and uses

• Crops on slopes, rolling terrain, and plots with elevation changes where conventional tape fails.
• Long lateral lines exceeding 100 m, where head loss between the near and far end of the line affects uniformity.
• Professional fertigation with short, frequent pulse irrigation.
• Subsurface drip irrigation (SDI) for fruit trees, potato, young citrus, and perennial crops with a buried system.

Quality and durability

An economical pressure-compensating tape fails on two counts: the compensation diaphragm is made of low-quality silicone or substandard ethylene propylene (losing elasticity within months and ceasing to compensate), and the passage labyrinth is narrow (causing systematic clogging within weeks). Hidroplex uses a calibrated technical silicone diaphragm and a wide-passage labyrinth with self-cleaning, which separates a true PC tape built for professional fertigation from a “self-compensating” label that does not actually compensate in practice.
